A History of Funnels (Part 3)

In  2011, Polin Waterparks introduced what is possibly their most unique slide: the Magic Sphere. It can be fully enclosed so that the visually striking sphere provides a controlled environment for any story or theming element that its designers can think of. It can be half open or just have a small opening so that natural light come into the Sphere. It has a striking appearance and given its shape can be the signature slide for any park.

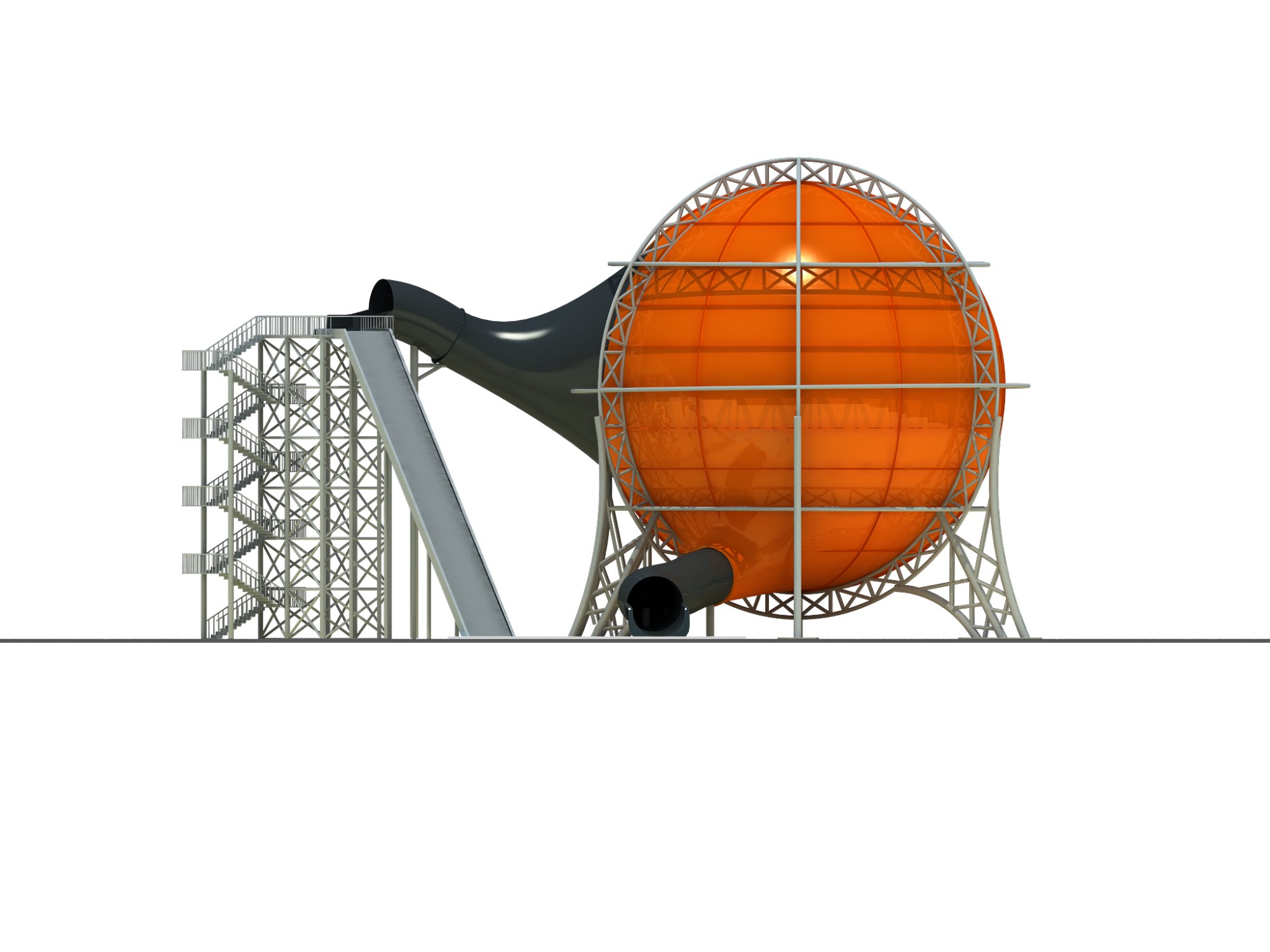

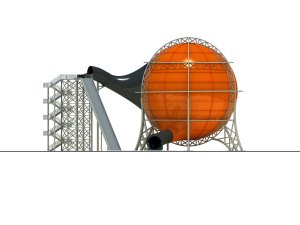

Ride Profile Magic Sphere Polin

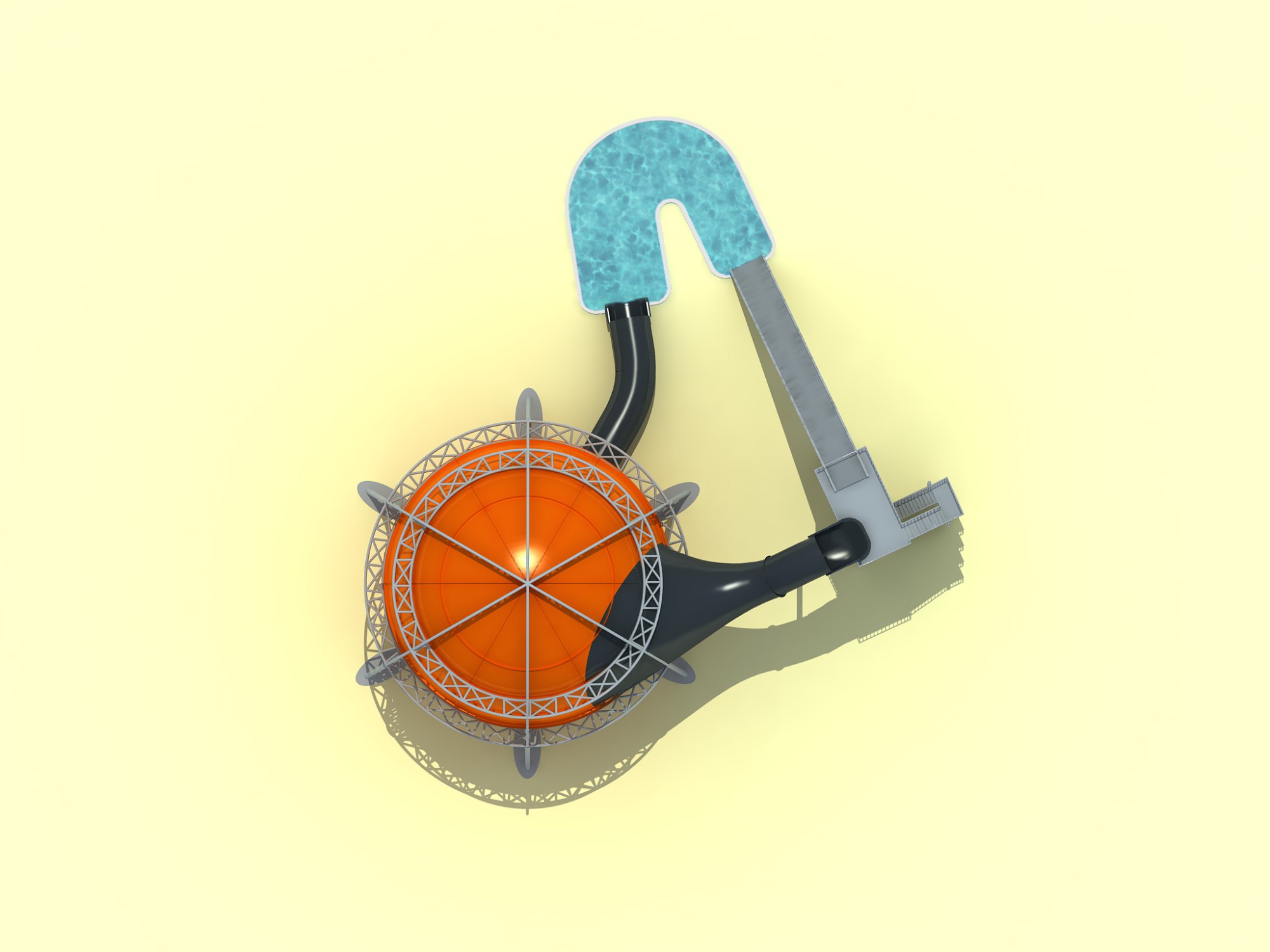

Top Ride Profile Magic Sphere Polin

Polin provided those two concept arts that show what a sample installation of the Magic Sphere could be.

Ride wise, the average total height of the slide launch is 72 feet tall. After the custom slide segment, the raft drops at a 32 degrees angle into the sphere where it follows a seemingly random path, going up and down the sides before exiting through another tunnel into either a runout or exit pool depending on the operator’s preference.

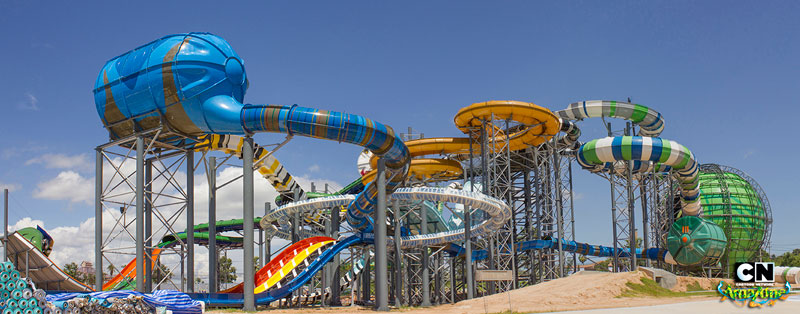

CN-Amazone-The-Omniverse

This picture provided by CN Amazone show the Omniverse area of the water park. The Magic Sphere known here as “The Omnitrix” is on the right. http://cartoonnetworkamazone.com/en/index.php

Magic Sphere Polin CN

You can see most of the extended slide path before the dive into the Magic Sphere. This picture appears courtesy of http://www.polin.com.tr/default.aspx

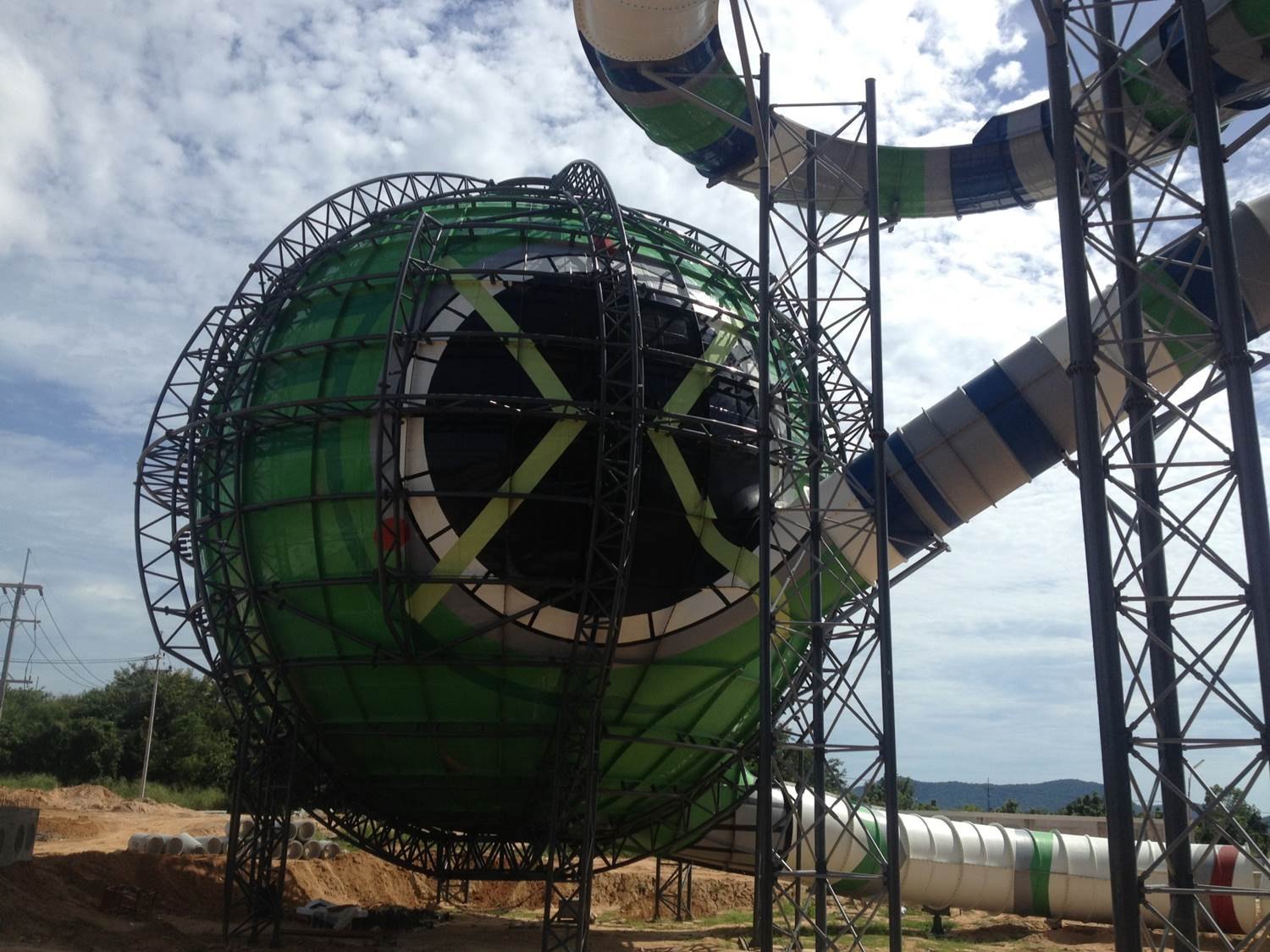

Magic Sphere Polin CN 2

The huge Magic Sphere. Given its enclosed nature and shape, it was a natural evolution to add dramatic digital effects and surround sound. This picture appears courtesy of http://www.polin.com.tr/default.aspx

In 2012, Polin introduced an interesting evolution of the Funnel Slide. Known as the “Surf Safari”, it is an extremely flexible design with fully enclosed, half open and half closed configurations. In the case of the first North America installation at Cowabunga Bay (Las Vegas, NV), it has a waterfall coming down from one side. It is an option that can be installed on one or both sides of the pipe opening.

Rixos_Premium_Ekirova_Antalya_ (1)

This picture shows the water slide section with the Surf Safari on the right. This was the first installation at Rixos Premium Terikova (Terikova, Turkey) and it opened in 2014.

Rixos_Premium_Ekirova_Antalya_ (2)

This great picture shows the whole slide layout.

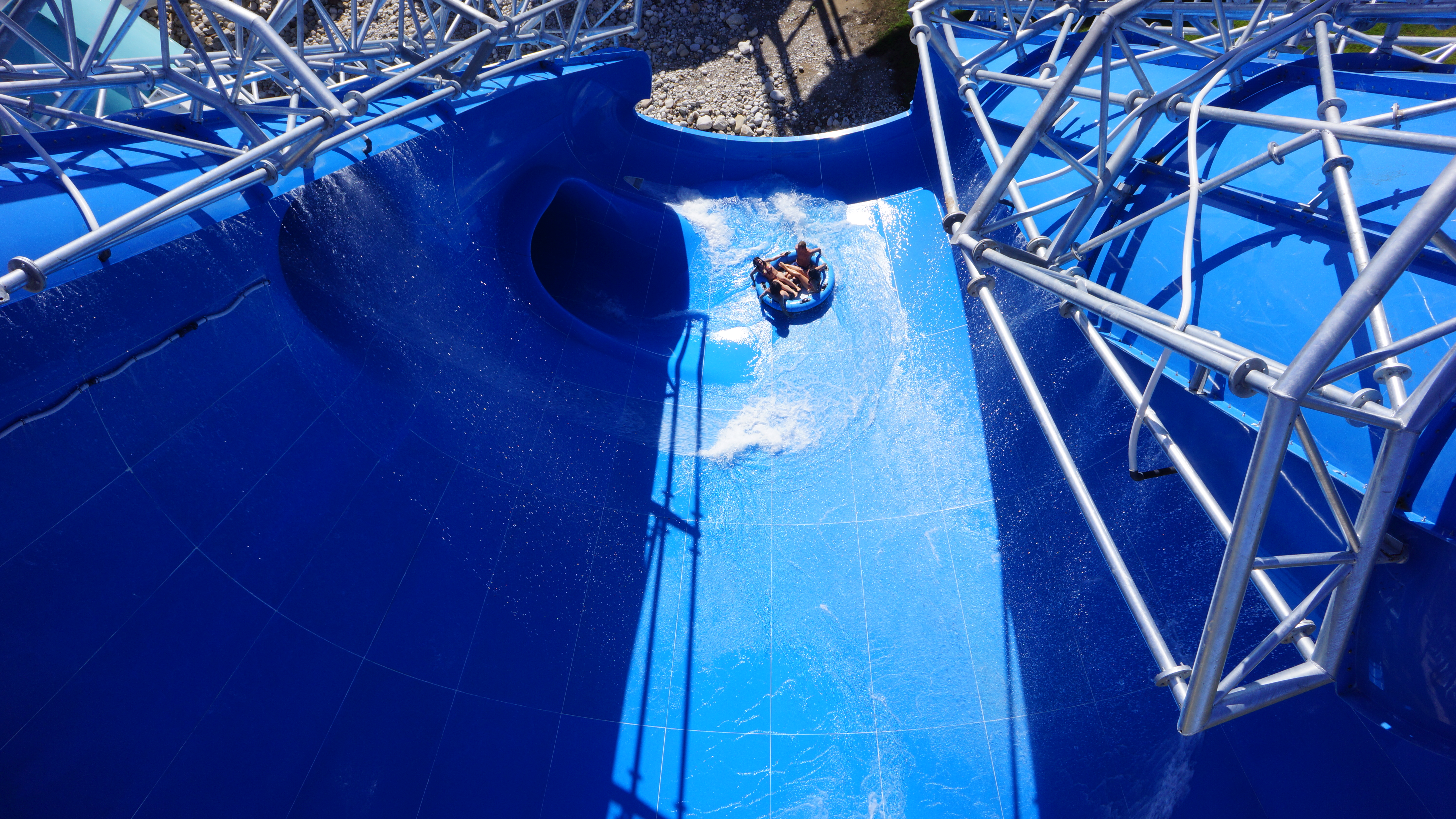

Rixos_Premium_Ekirova_Antalya_ (3)

The large raft is near the exit of the Surf Safari.

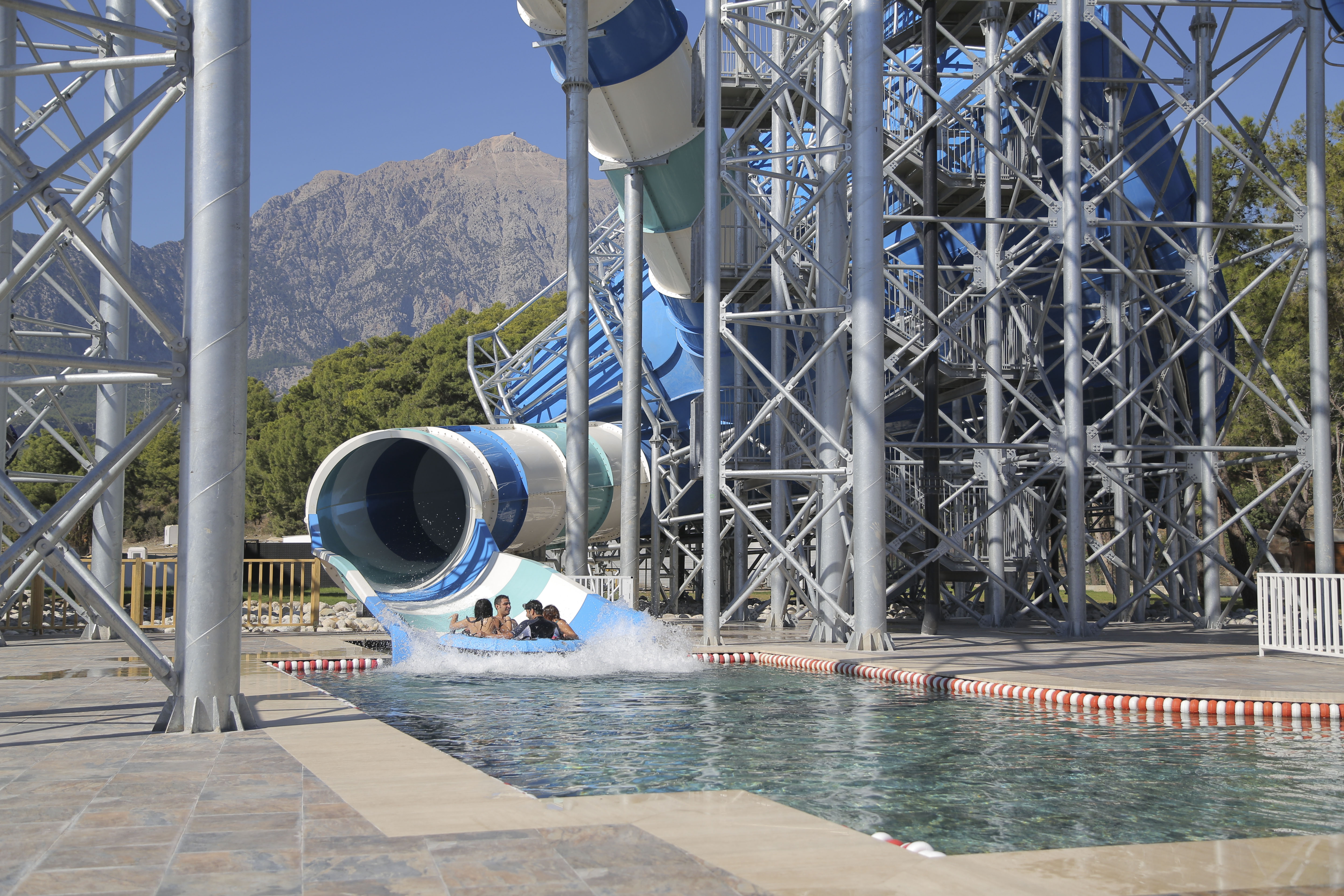

Rixos_Premium_Ekirova_Antalya_ (4)

A small runout pool was selected by the park for this installation.

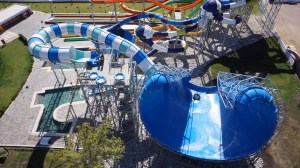

Rixos_Premium_Ekirova_Antalya_ (5)

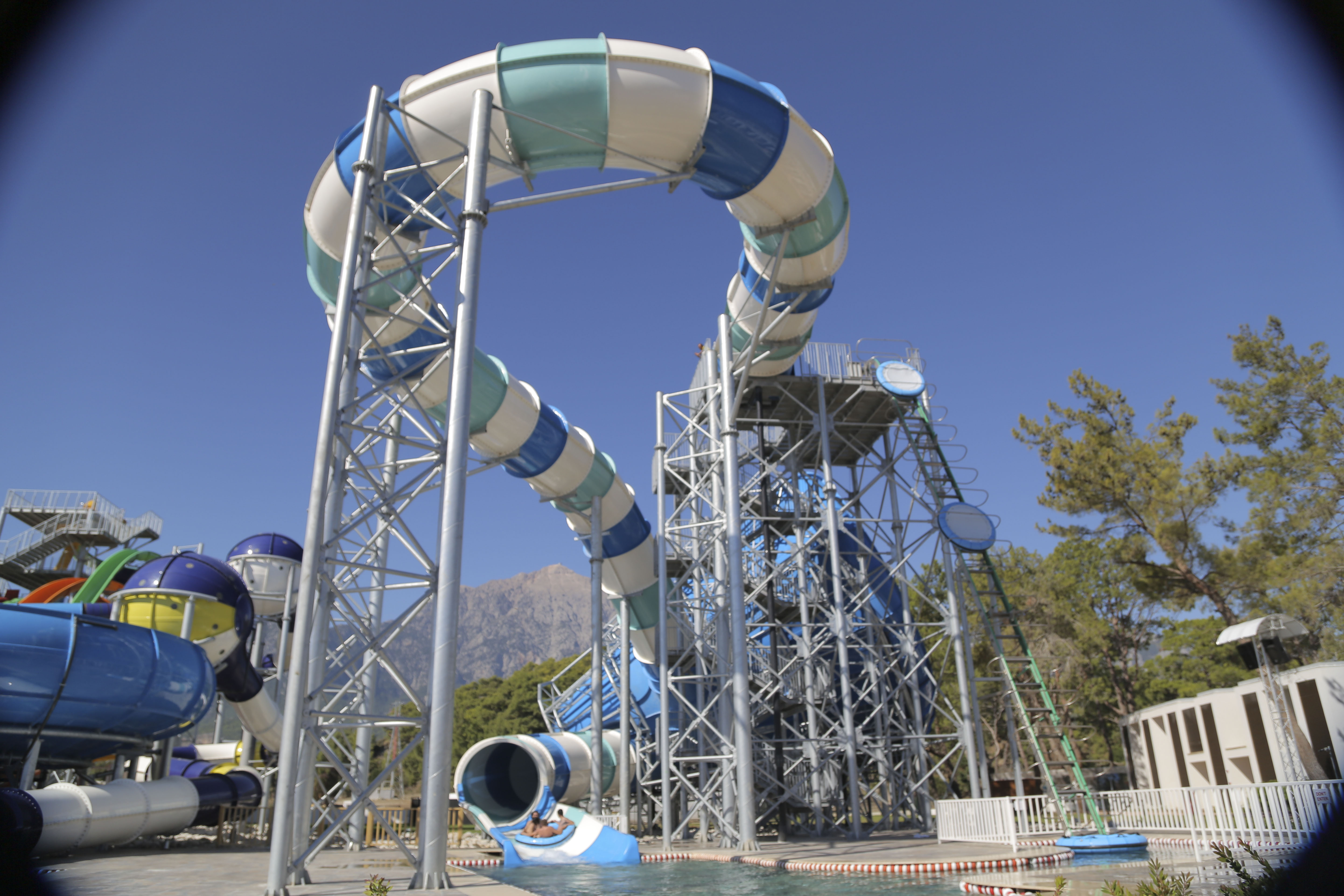

A modified U shape slide layout was designed for the pre Surf Safari portion.

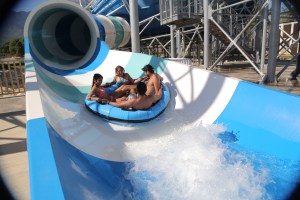

Rixos_Premium_Ekirova_Antalya_ (8)

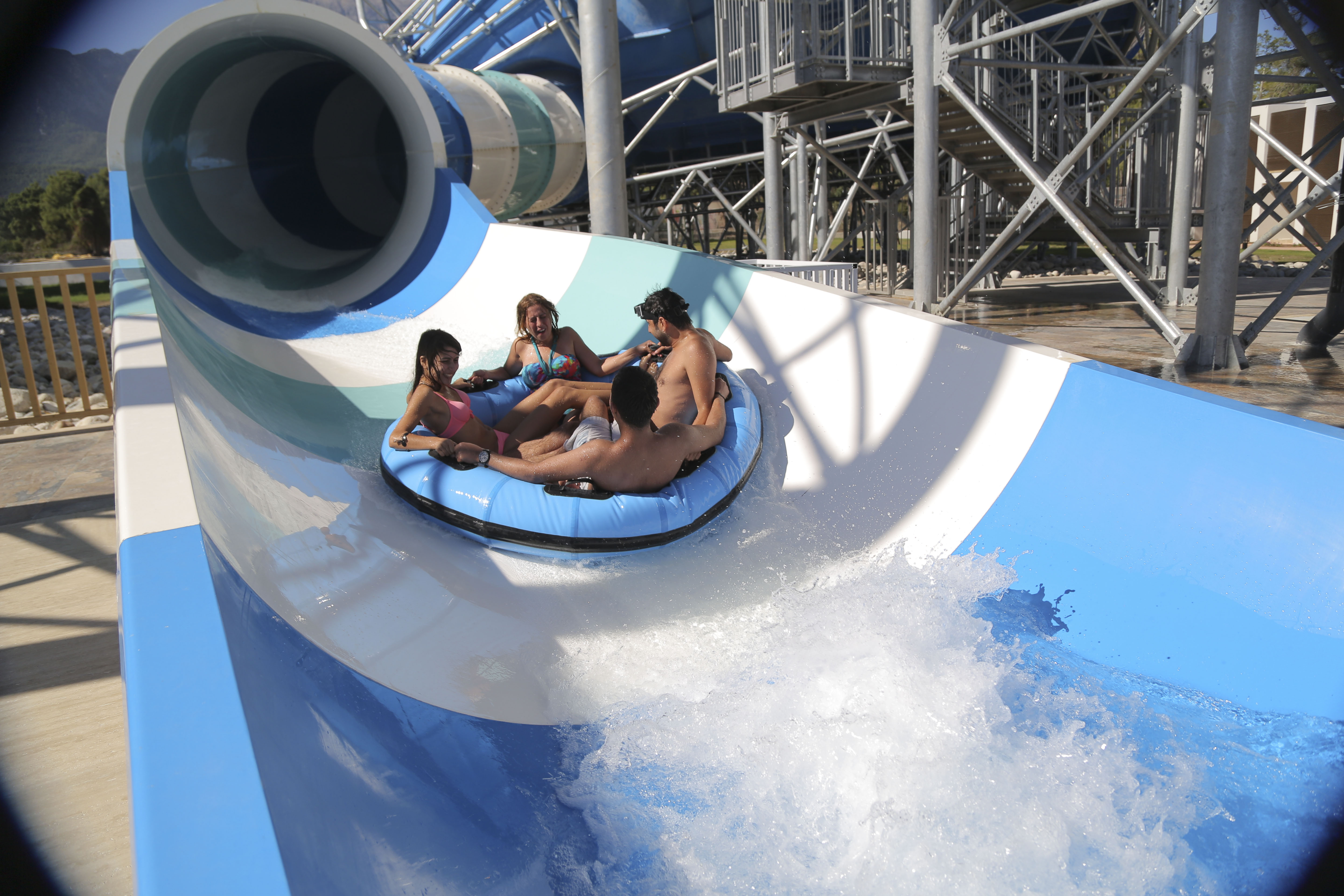

After exiting the Surf Safari, this slide section give the raft the time and space needed for it to return to a neutral position for a smoother stop.

Rixos_Premium_Ekirova_Antalya_ (9)

Excited riders surrounding one of the slide raft.

All above pictures appears courtesy of http://www.polin.com.tr/default.aspx

The bowl shape is parabolic and engineered for a longer ride time and more action than comparable models. The 4 persons raft enter one end of the bowl, does a few oscillations before coming out near the entrance.

Surf Safari IAAPA 2012 model

This picture shows the Surf Safari model that is opening as “Wild Surf” in 2015 at Cowabunga Bay. Notice the waterfall and the space efficient raft lift. The real one will feature an impressive 60 feet drop into the parabolic bowl.

Cowabunga_Bay_Las_Vegas (1)

Cowabunga_Bay_Las_Vegas (2)

Cowabunga_Bay_Las_Vegas (3)

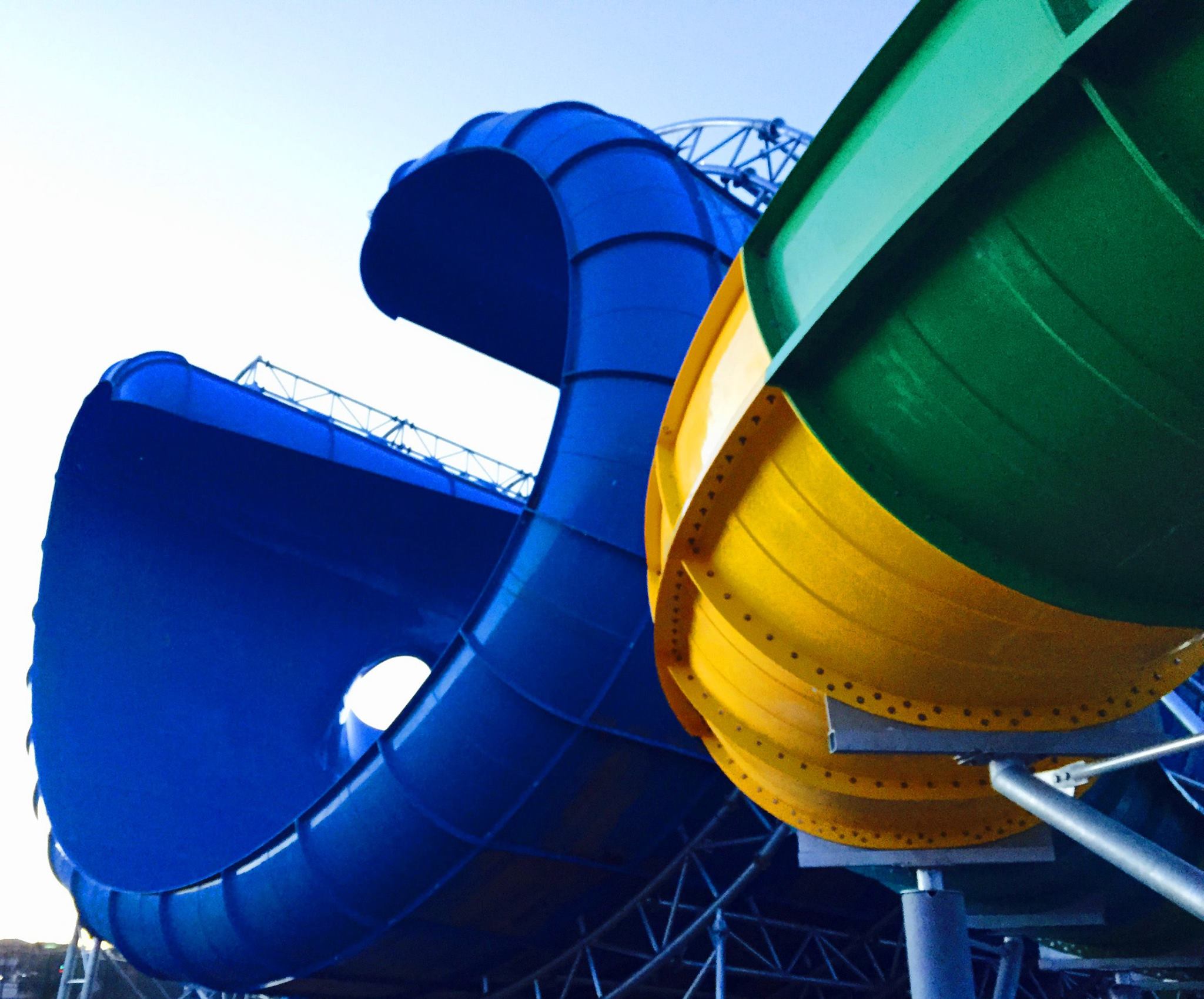

The above 3 pictures show the real Cowabunga Bay Surf Safari under construction. It will open in late May 2015 under the name of “Wild Surf”. The pictures appear courtesy of http://www.polin.com.tr/default.aspx

In 2013, the Space Shuttle was unveiled and offered to prospective customers. It uses the two person inline inner-tubes to take riders down a path that mix slide sections and elongated pipes that give thrilling back and forth movements. They can be either fully enclosed, half enclosed or open. The longer tubes have a benefit as using water projected near the base, riders will be repositioned in a forward position for the rest of the slide, thus preventing tubes getting stuck sideway or going backward.

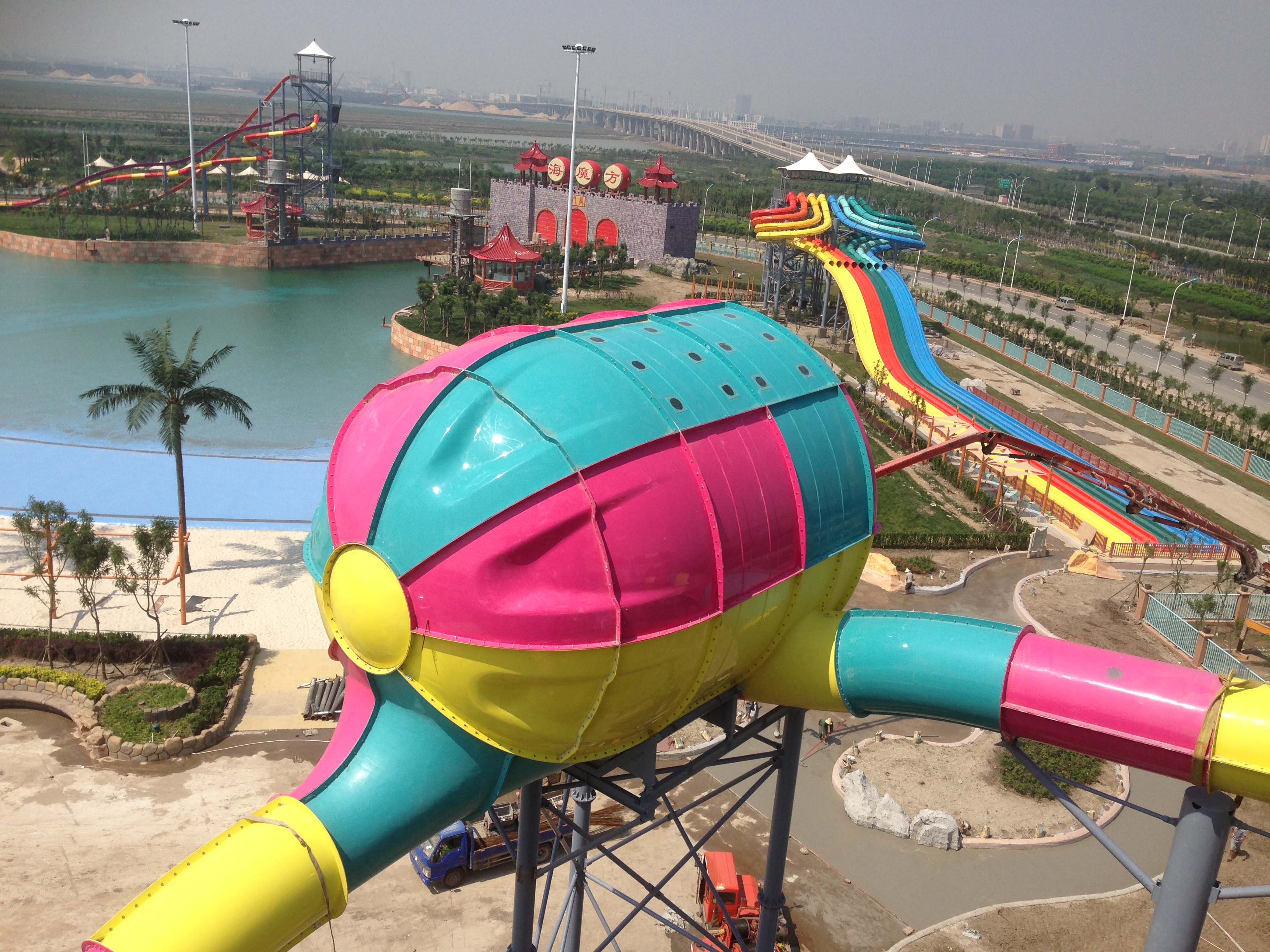

Space Shuttle Polin

Polin provided this picture of a brightly colored Space Shuttle. This pictures appear courtesy of http://www.polin.com.tr/default.aspx

The first installations opened in 2014 and in the case of the one at CN Amazone water park (Bang Saray, Thailand), it combines many Polin technologies. “Alien Attack” features 3 “Space Shuttles” (the name of the elongated pipes), a uphill section and patented Natural Light Effects that add a lot to the experience.

Polin Natural Lights Effects

At IAAPA Attraction Expo 2014, Polin had a section of Natural Light Effects slide in demonstration. The pattern for this one is various denizens of the sea, but for CN Network, stripes give an incredible visual effect as you go down the slide.

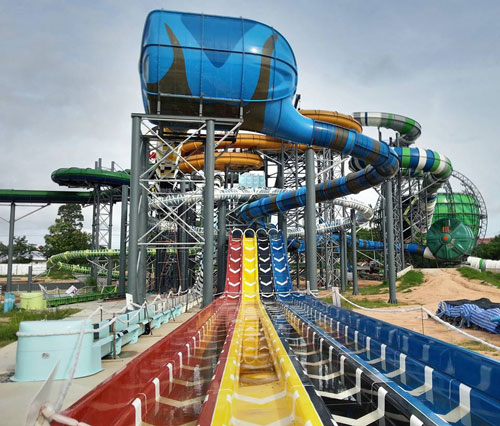

CN Amazone Alien Attack

CN Amazone waterpark provided this picture of the second Space Shuttle. One unique feature is that each one has its own custom colors. http://cartoonnetworkamazone.com/en/index.php

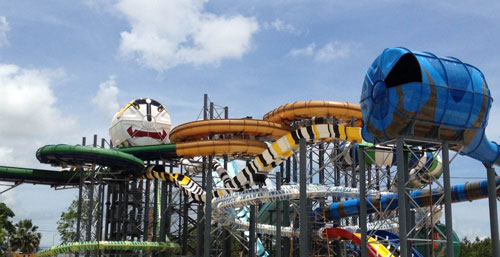

CN Amazone Alien Attack 2

You can see the uphill section with the white and black colors before the blue element. http://cartoonnetworkamazone.com/en/index.php

In 2014, the “Sphere” opened at Aquacolors in Porec, Croatia. It takes the same streamlined design as the Magic Sphere, but there are multiple smaller spheres instead of a large one. Thus, it can be designed around existing slides or infrastructure. It uses the familiar two person inline inner-tubes to carry its passengers.

Aquafantasy_Izmir_Turkey (2)

Aquafantasy_Waterpark_Izmir_Turkey (18)

The above two pictures show the Sphere at Aquafantasy Izmir in Turkey. They feature an uphill section like the Space Shuttle at CN Amazone. Thank you to http://www.polin.com.tr/default.aspx for the pictures

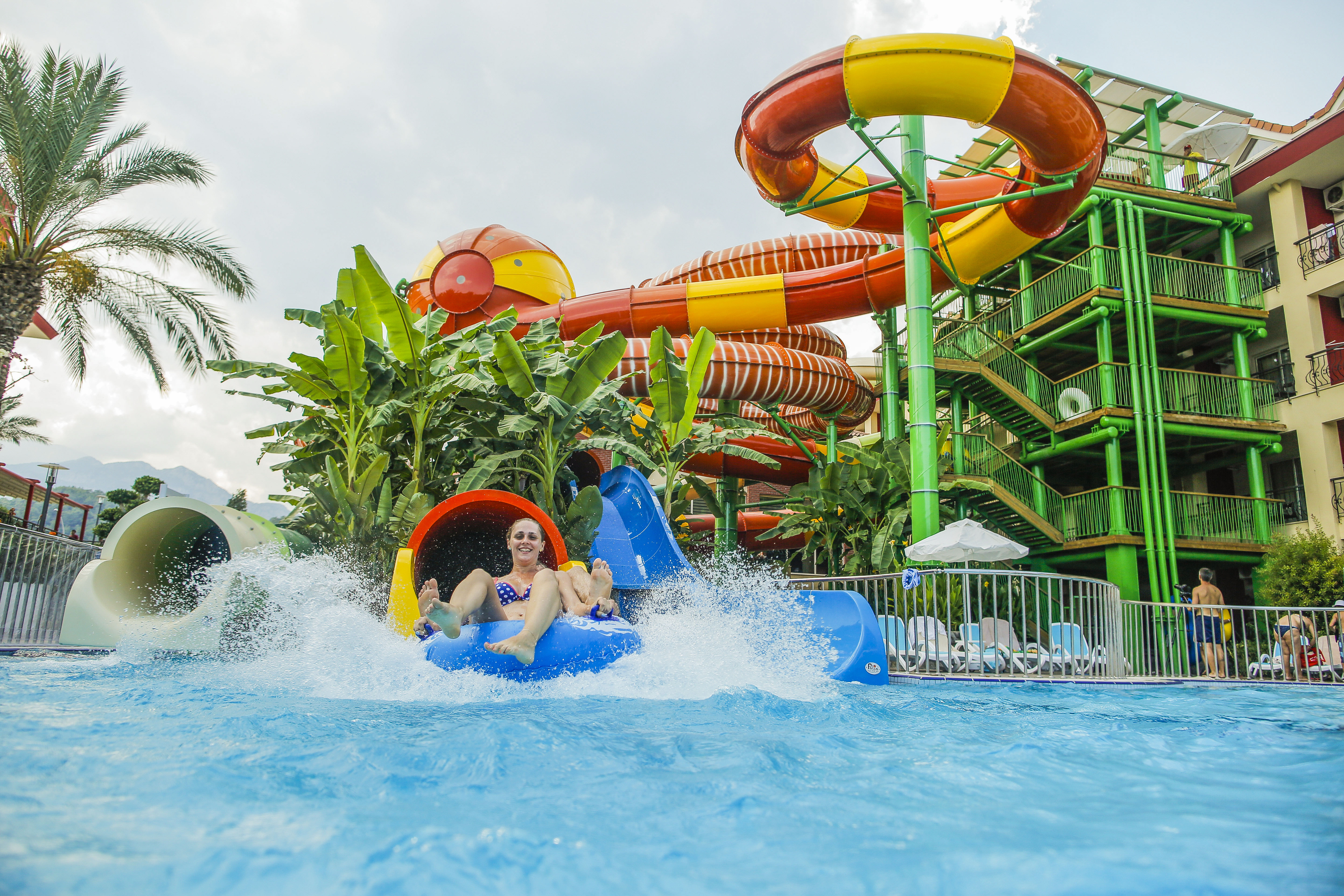

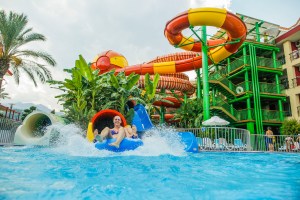

Crystal_Aura_Antalya_Turkey

This is a compact Sphere installation at Crystal Aura Antalya in Turkey as well. Thanks to http://www.polin.com.tr/default.aspx

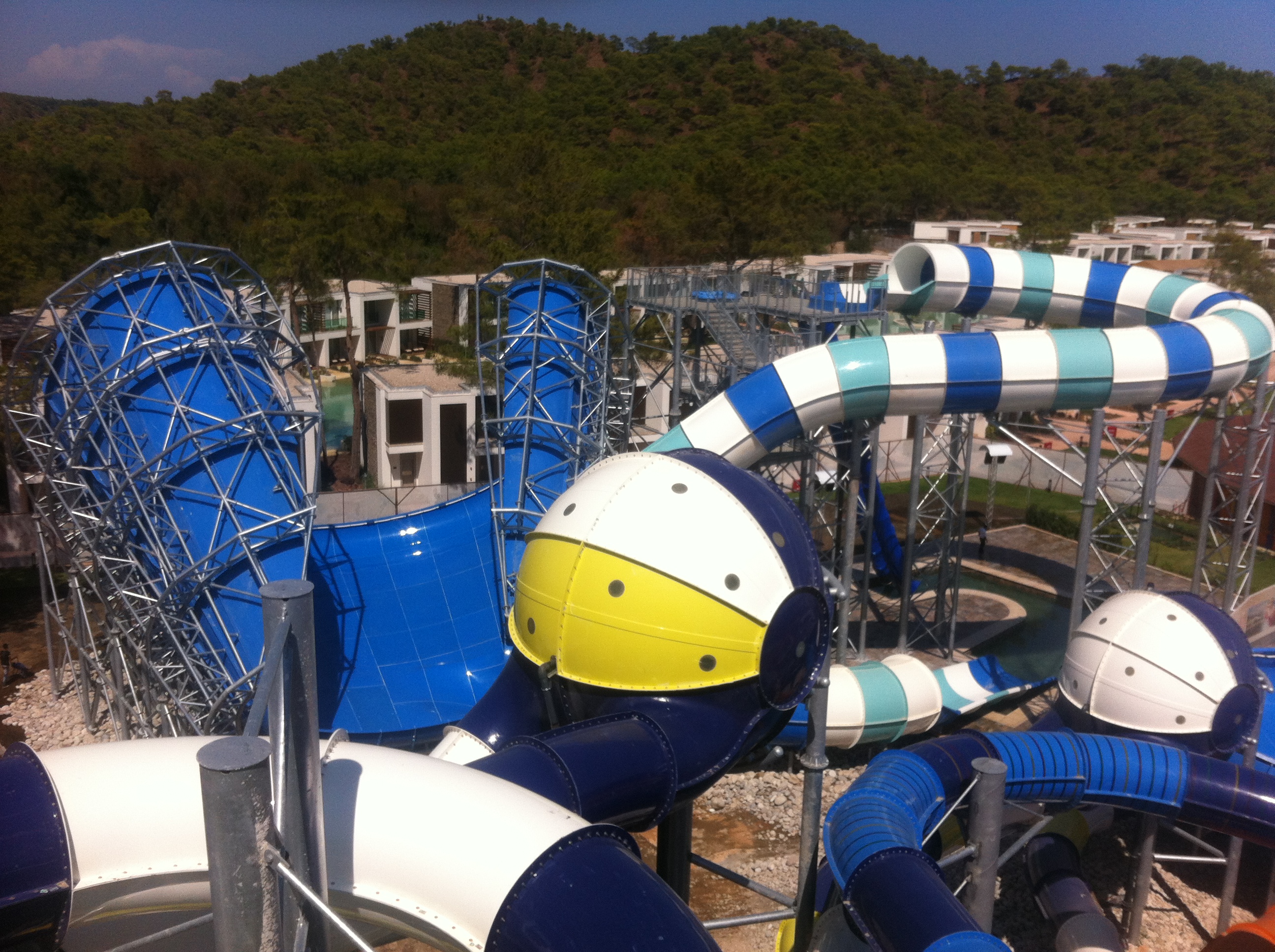

Rixos_Premium_Antalya_Turkey (2)

Rixos_Premium_Antalya_Turkey (1)

The two pictures show the Sphere at Rixos Premium Antalya (Turkey). Pictures appear courtesy of http://www.polin.com.tr/default.aspx

Polin is currently showcasing a new concept called the “Magicone”. It is an open ended cone that lay down on its side and again features the same high capacity 4 passenger rafts. It is a more compact solution for parks that are tighter on available space, but still want a thrilling high capacity attraction. The first Magicone will be opening on May 16th 2015 at the Aquacolors water park as well.

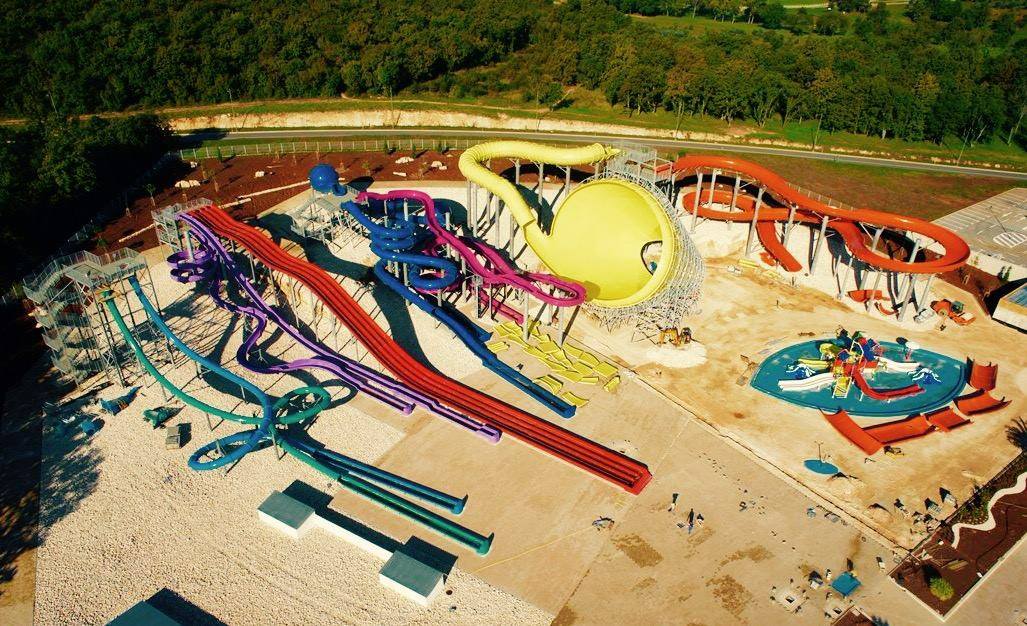

Aquacolors_Porec_Croatia

Aquacolors_Porec_Croatia(1)

Aquacolors_Porec_Croatia(2)

Aquacolors_Porec_Croatia(3)

Aquacolors_Porec_Croatia(4)

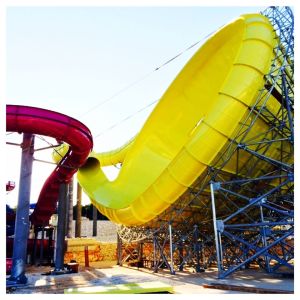

Those 5 picture show the Magicone under construction and from the overhead pictures, its size in comparison to other attractions. The pictures appear courtesy http://www.polin.com.tr/default.aspx
